Industry ApplicationsFilter Presses for Piling & Shield Tunneling
Shun Jia filter press projects in piling & shield tunneling: solid-liquid separation and sludge dewatering with XABM and XAM series filter presses.
Handling bentonite slurry from piling and shield tunneling
Bored piles, diaphragm walls and shield tunneling (TBM) use bentonite slurry to support the excavation and carry the drilled soil. After use, the slurry is mixed with soil and has to be separated. Removing liquid slurry from an urban construction site is expensive, needs many tanker trucks, and is increasingly restricted by environmental rules.
A filter press separates spent slurry into a firm soil cake and water that can be reused to make new slurry. The result is far less waste hauled off site, lower fresh water demand and a cleaner work area. A compact unit fits on construction sites with limited space.
Typical materials
- 01Spent bentonite slurry from bored piles and diaphragm walls
- 02Soil slurry from shield machines / TBM
- 03Horizontal directional drilling (HDD) mud
- 04Wastewater from equipment and site washing
Choosing the right filter press
Hydraulic filter presses with 800 to 1000 mm plates suit medium-sized piling projects and are easy to relocate. Tunneling projects with high slurry output usually need electric hydraulic models with 1250 mm plates or larger, fitted with automatic plate pulling, the optional plate shaking device for easy cake release, and sludge pumps and mixing tanks from our auxiliary equipment range.

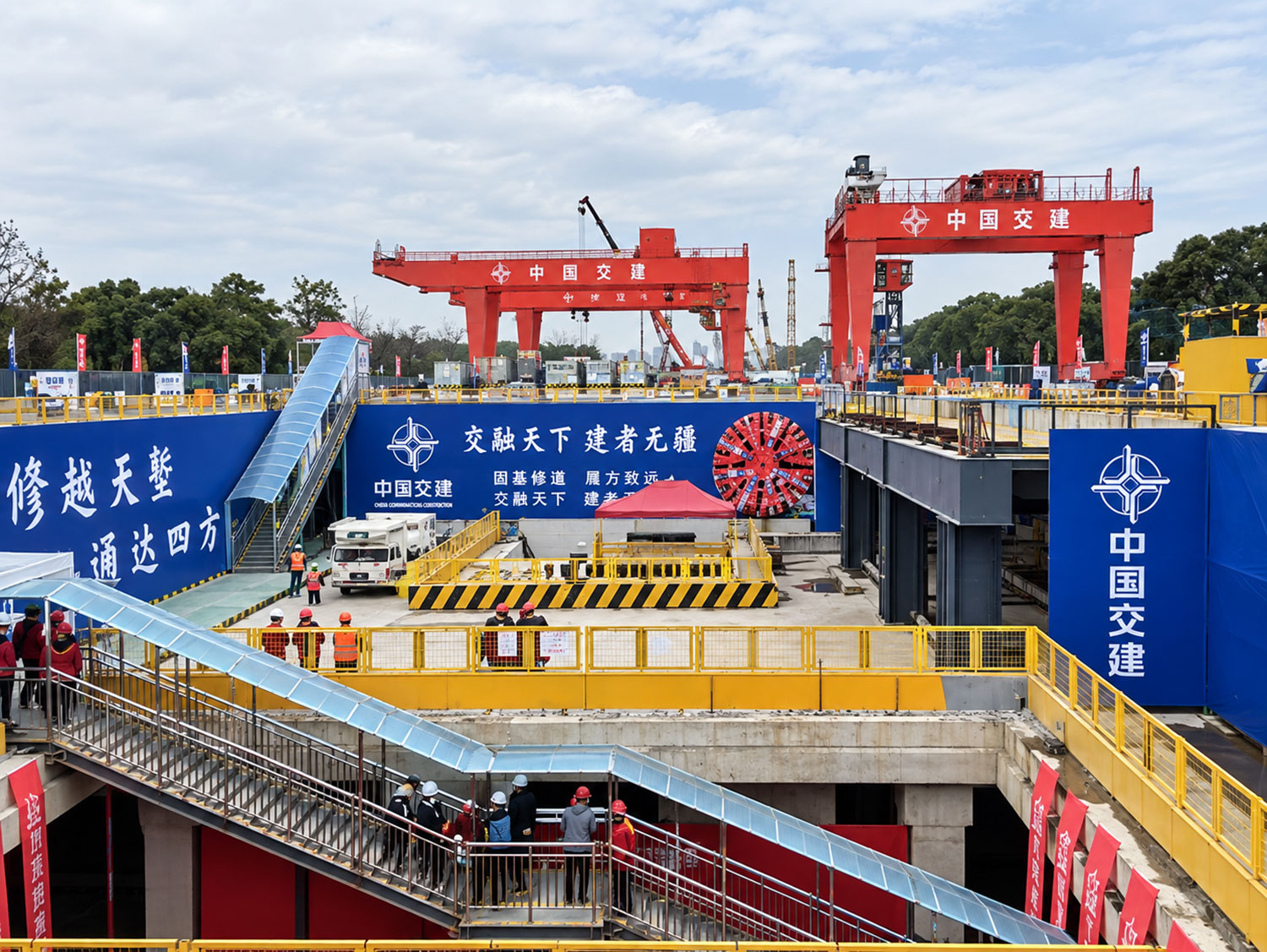

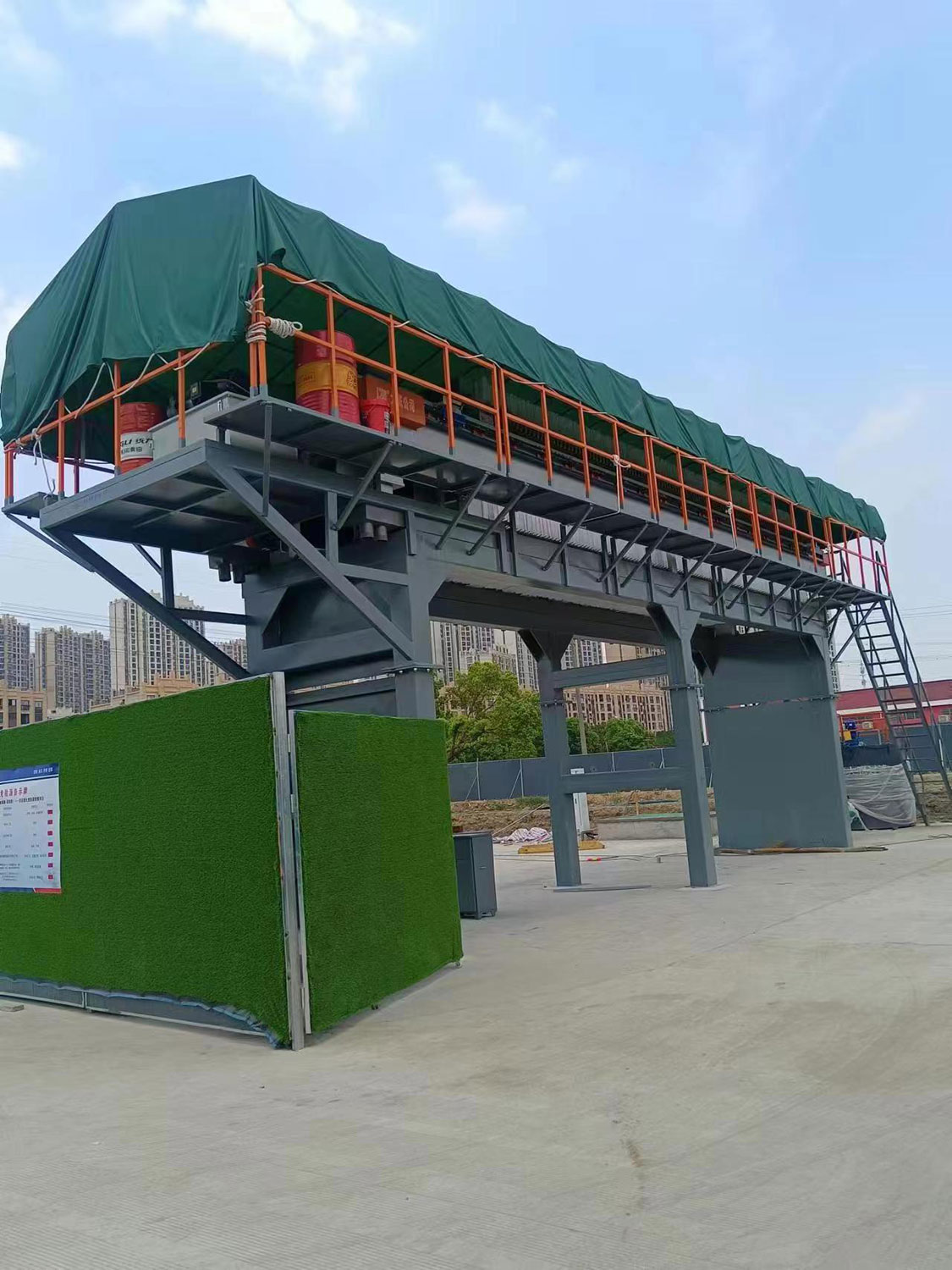

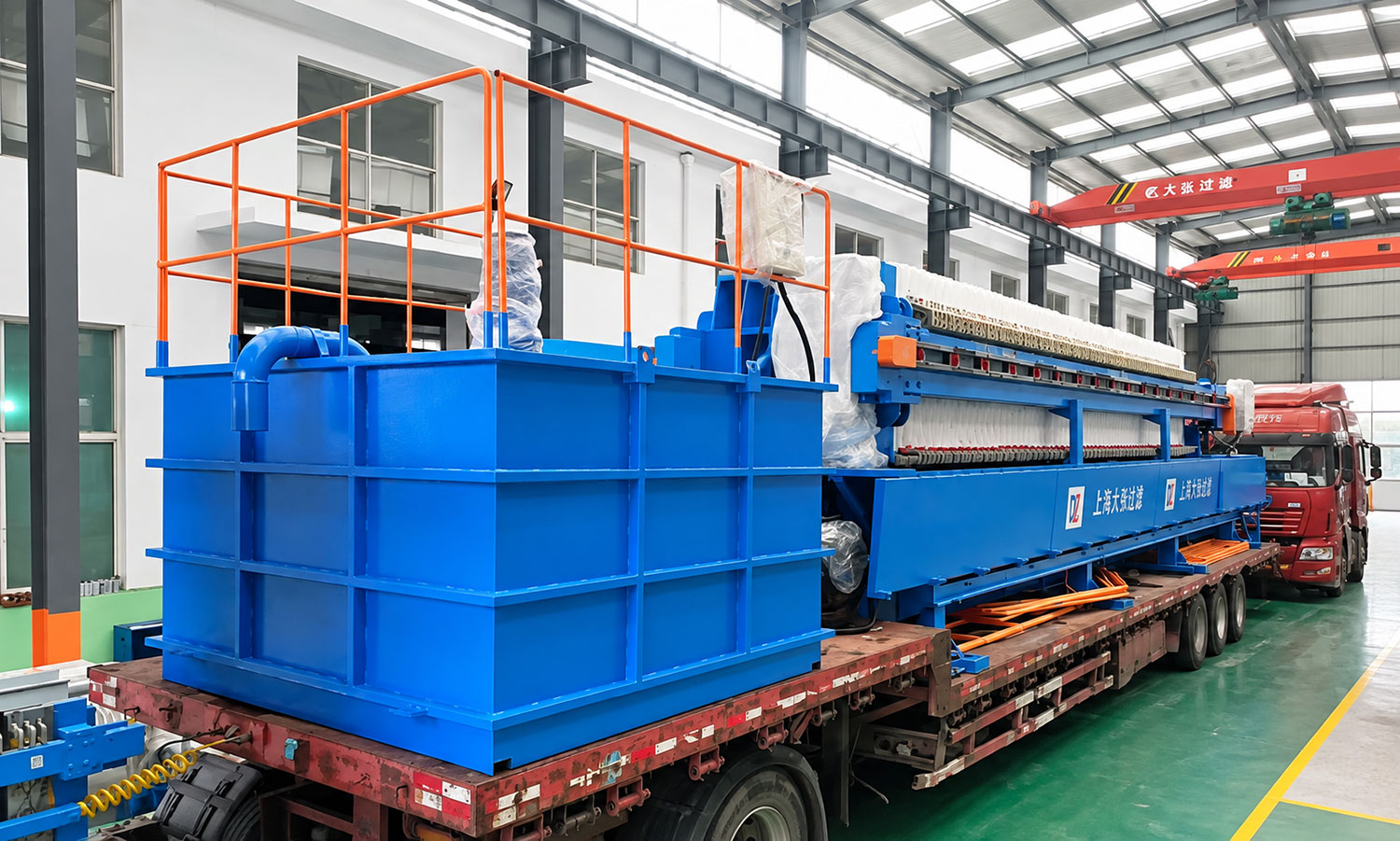

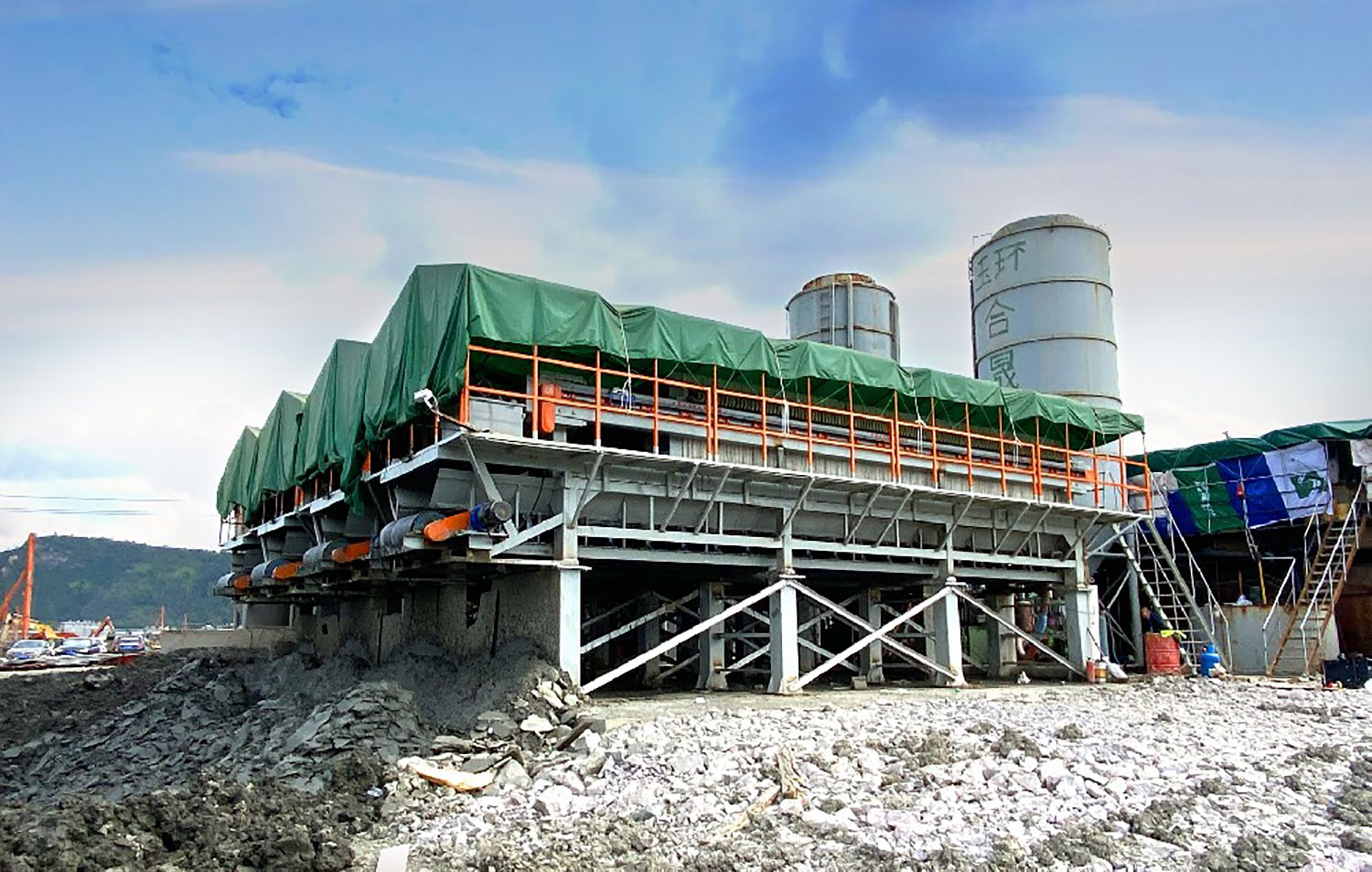

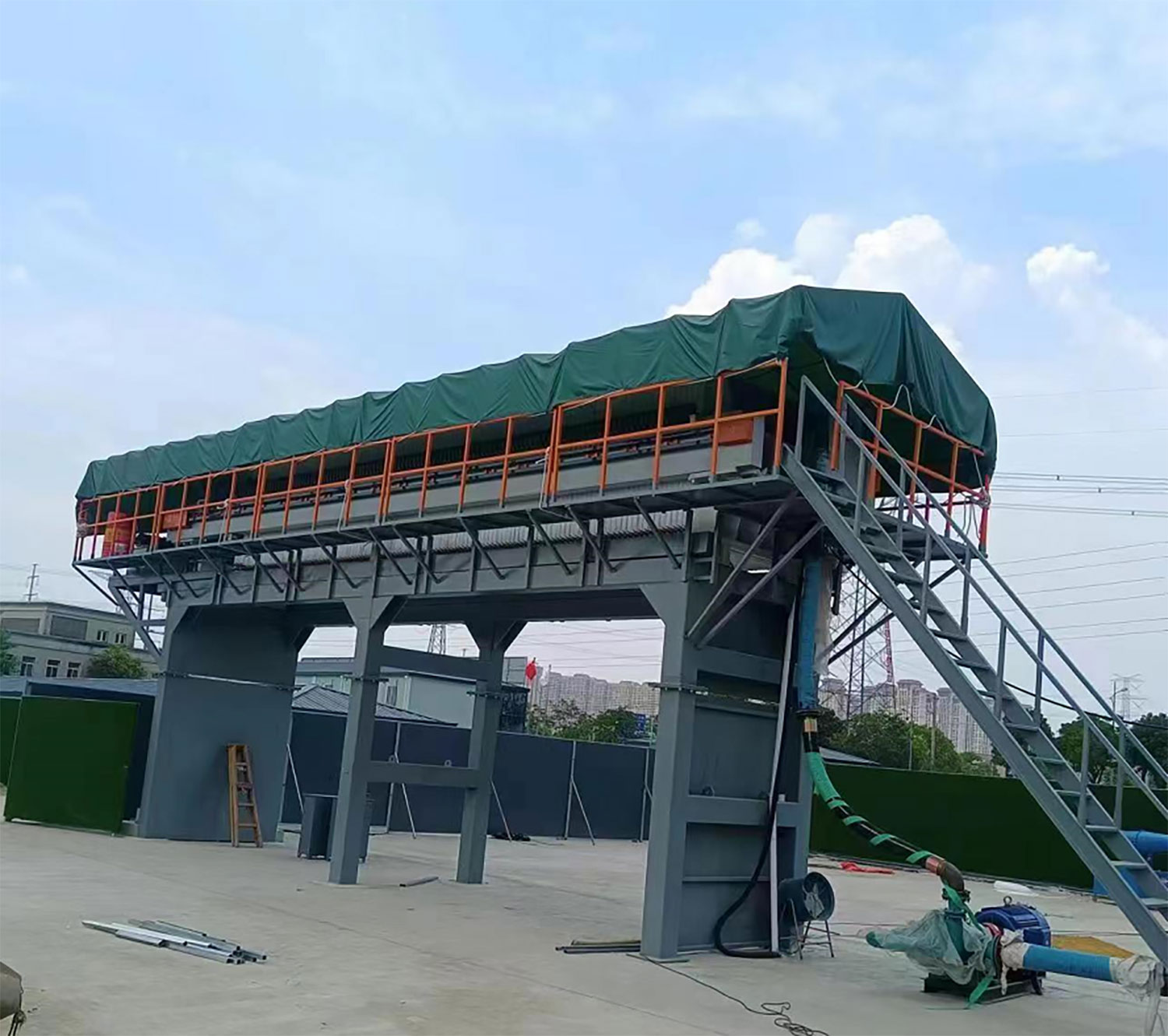

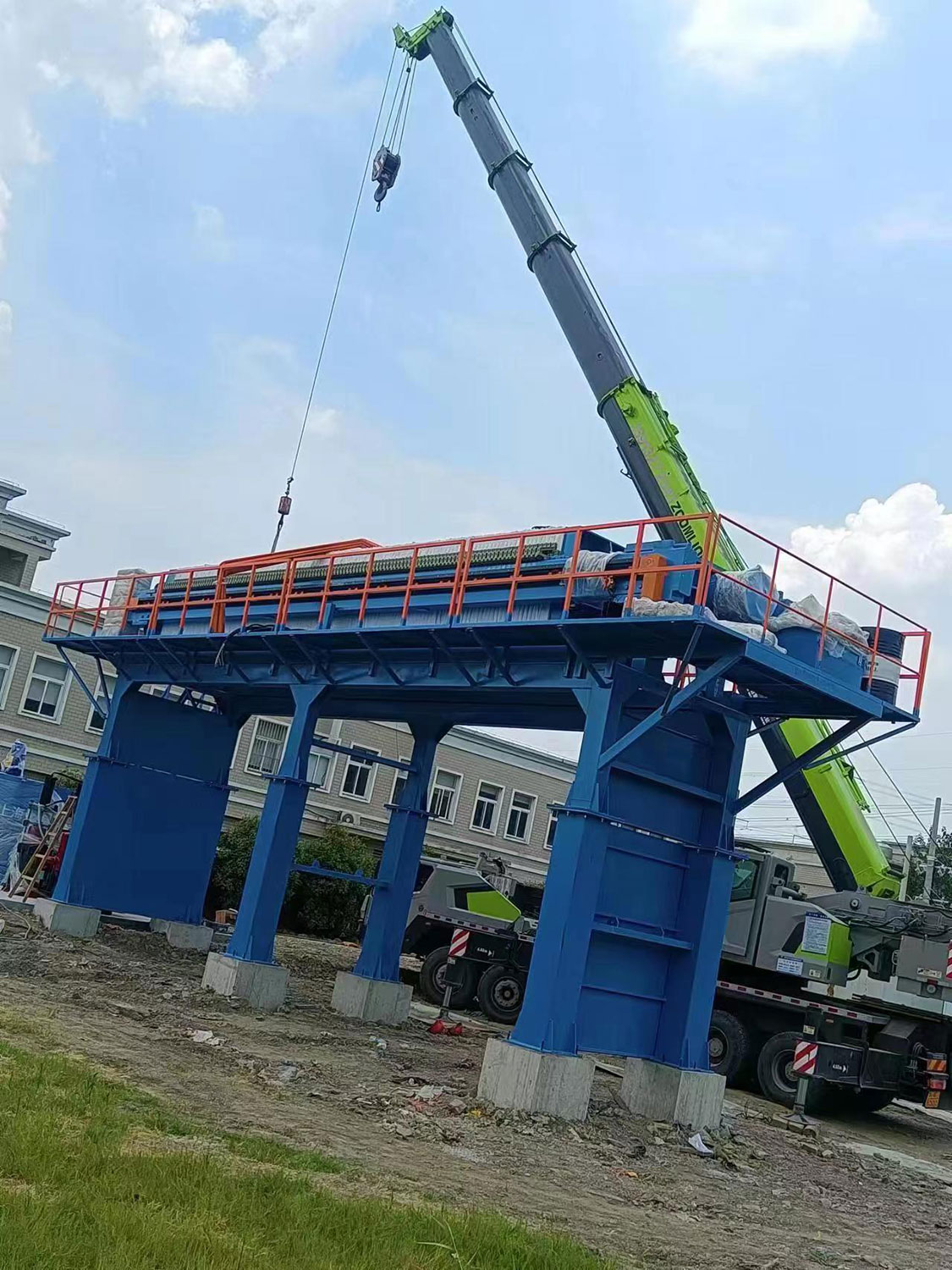

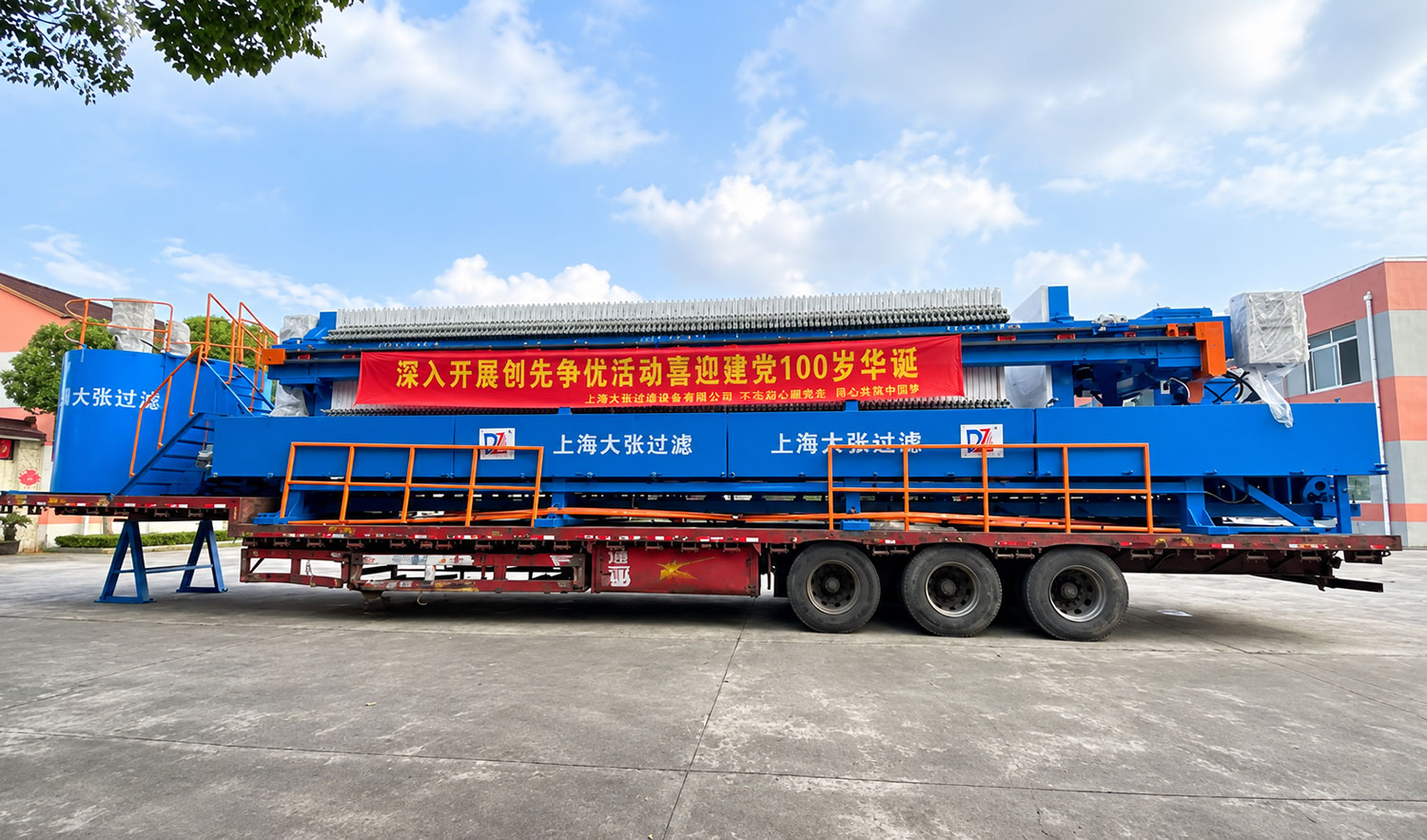

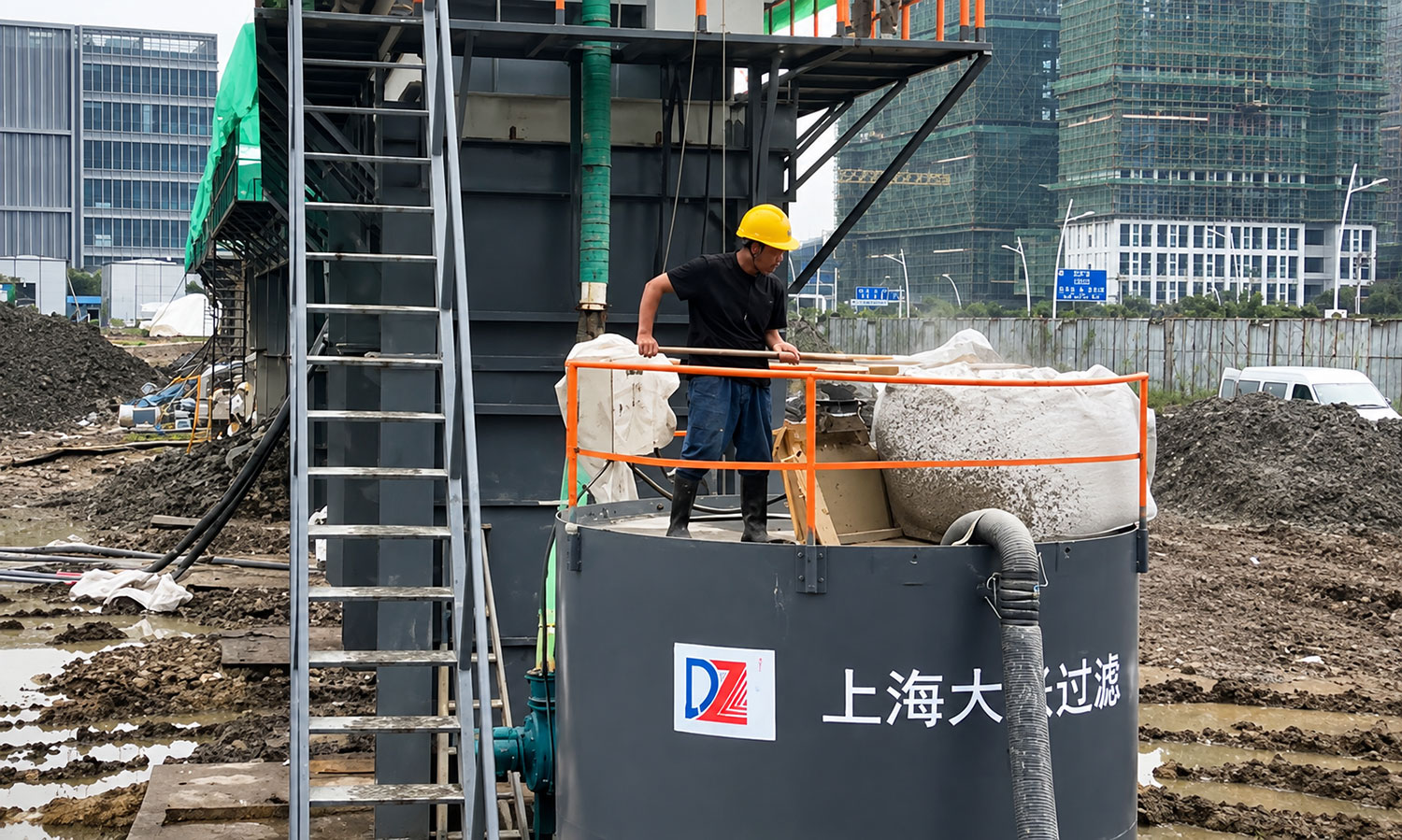

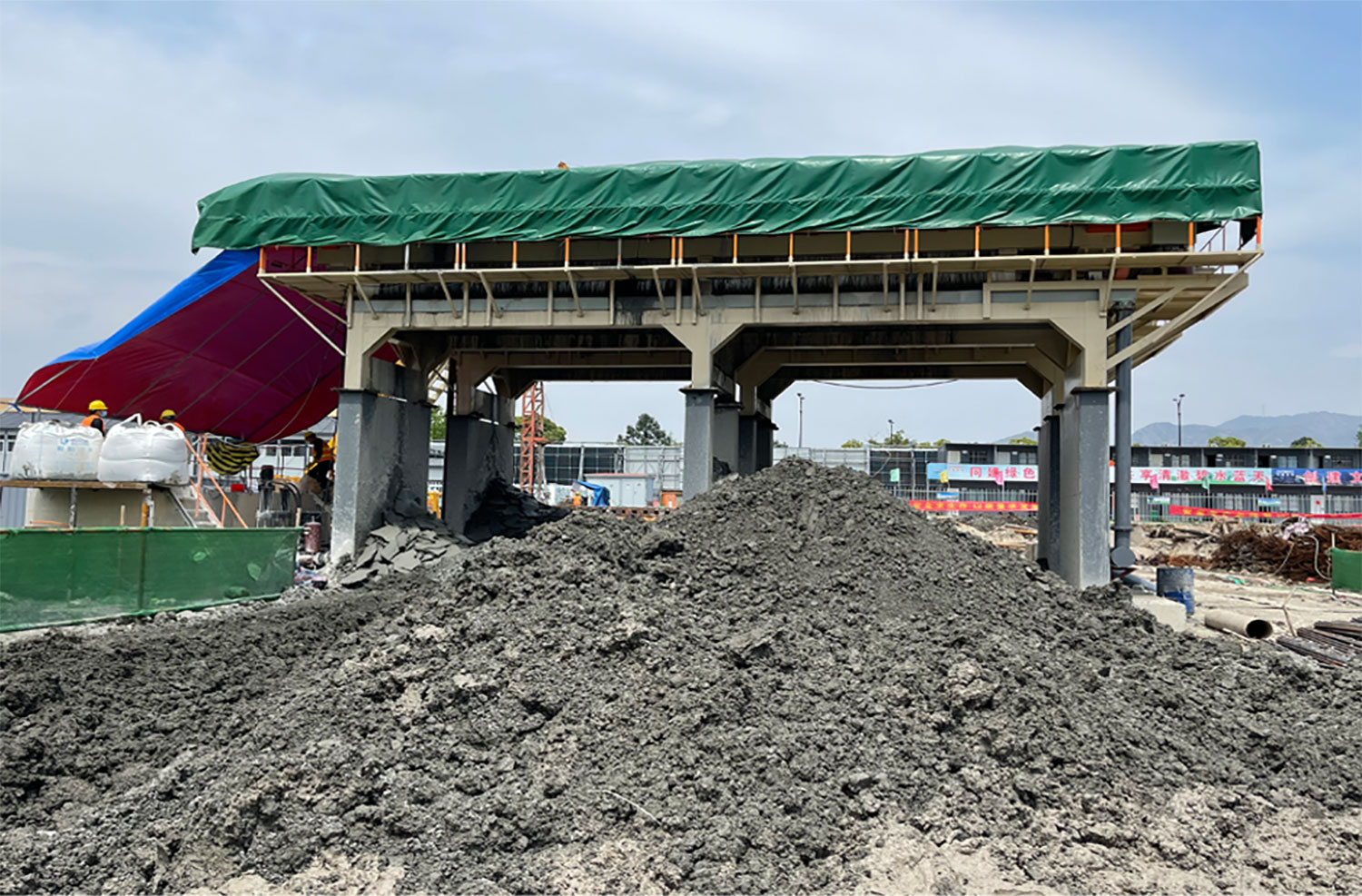

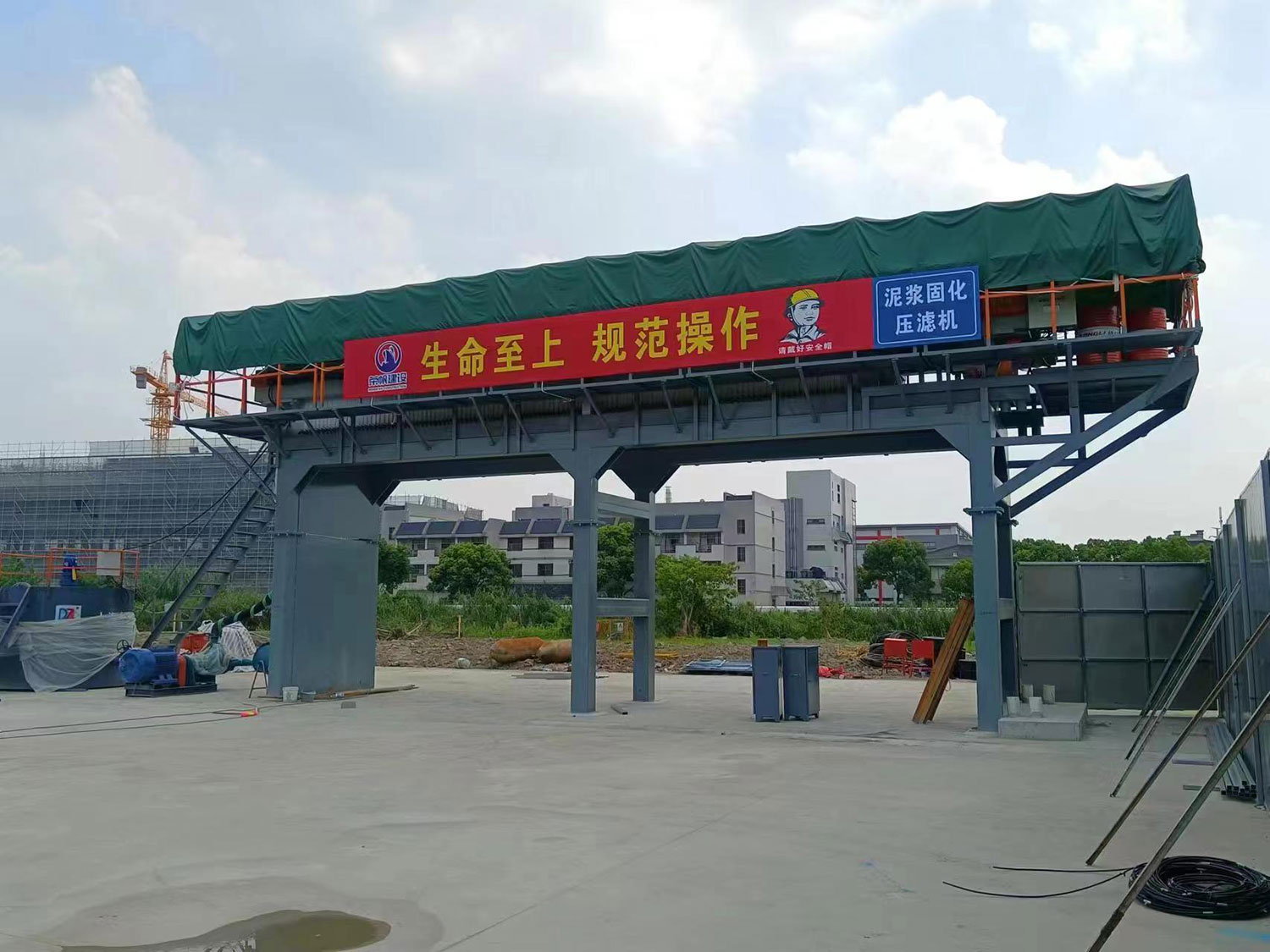

Project photos: Piling & Shield Tunneling
