Industry ApplicationsFilter Presses for River Dredging
Shun Jia filter press projects in river dredging: solid-liquid separation and sludge dewatering with XABM and XAM series filter presses.
Treating sludge from river and reservoir dredging
Dredging rivers, canals, lakes and reservoirs brings up sludge with a very high water content. This sludge is hard to transport and needs large storage areas if it is only left to dry naturally. A filter press turns liquid sludge into a solid cake that can be loaded onto trucks, while the water returns to the water body once it meets requirements.
Dewatering on site cuts drying time from weeks to hours per cycle, keeps the storage area small, and reduces odour and spills along the haul route. The filtered cake is also easier to reuse, for example as fill material or as a raw material for bricks.
Typical materials
- 01River and canal dredging sludge
- 02Reservoir, lake and retention pond sediment
- 03Sludge mixed with fine sand and organic matter
- 04Runoff water from temporary storage areas
Choosing the right filter press
Dredging projects usually need large capacity within a limited time, so electric hydraulic filter presses with 1250 to 2000 mm plates are often used with an automatic feeding system, sludge pumps and a chemical mixing tank for flocculation. For smaller projects, hydraulic models with 800 to 1000 mm plates are easier to move between sites.

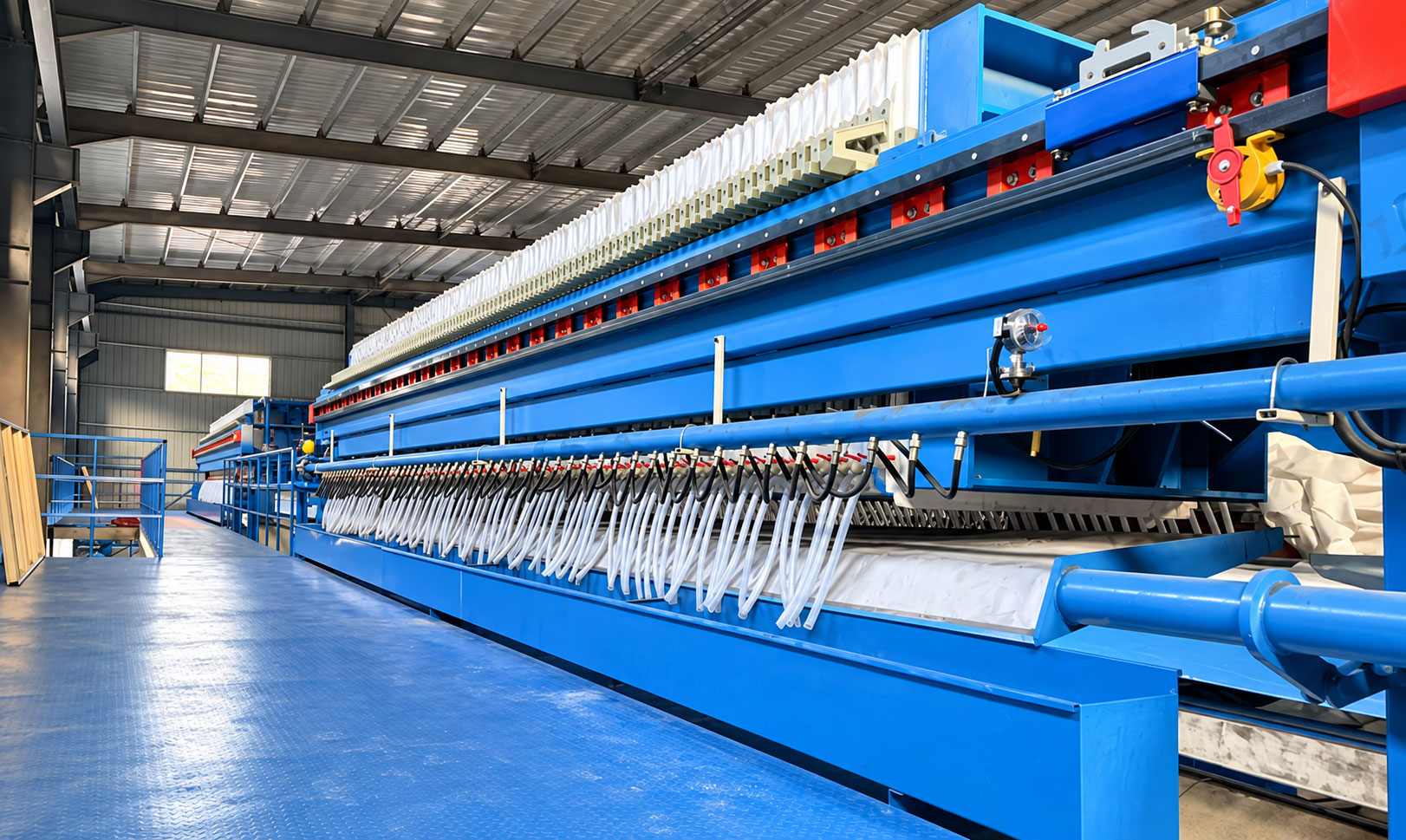

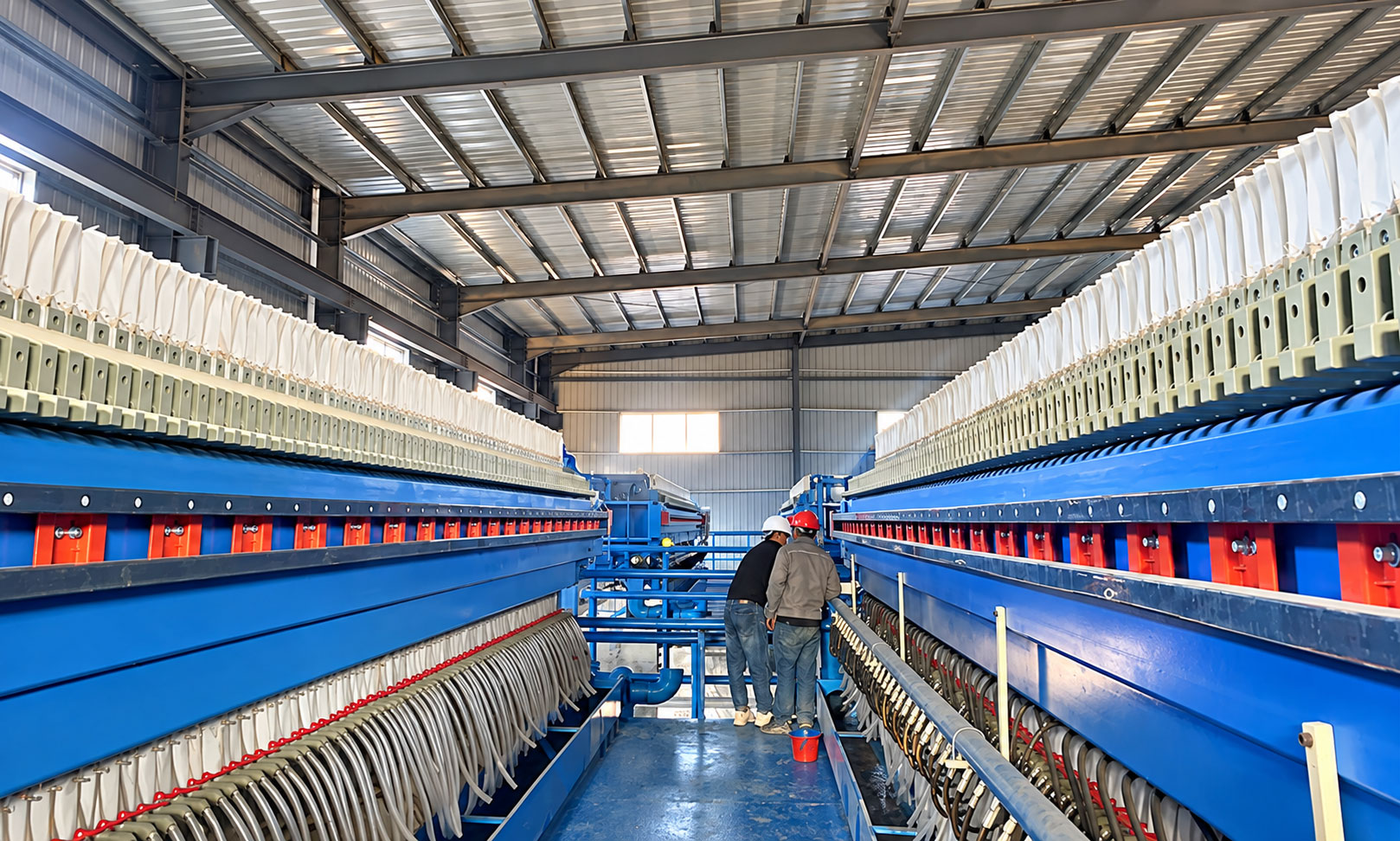

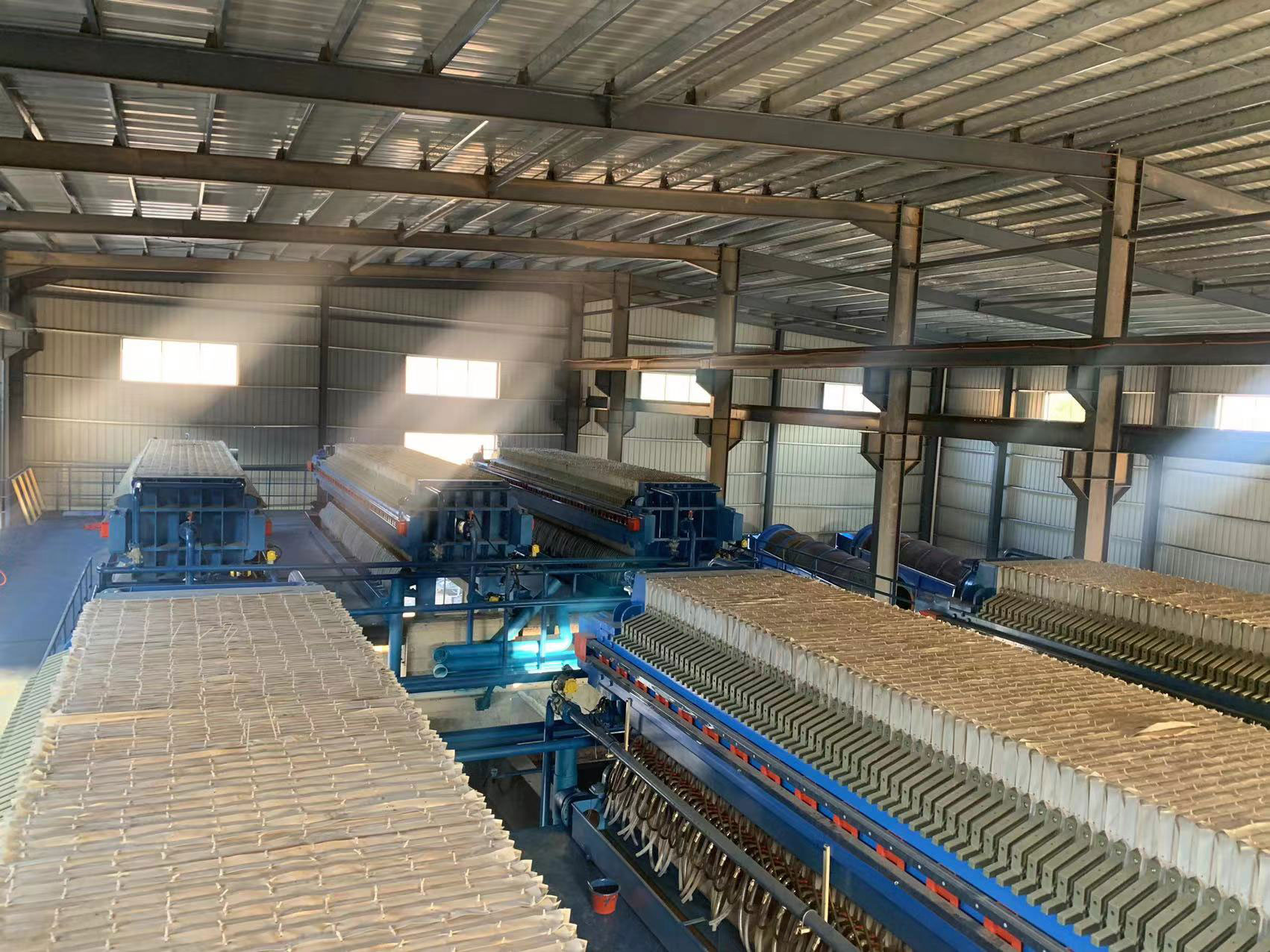

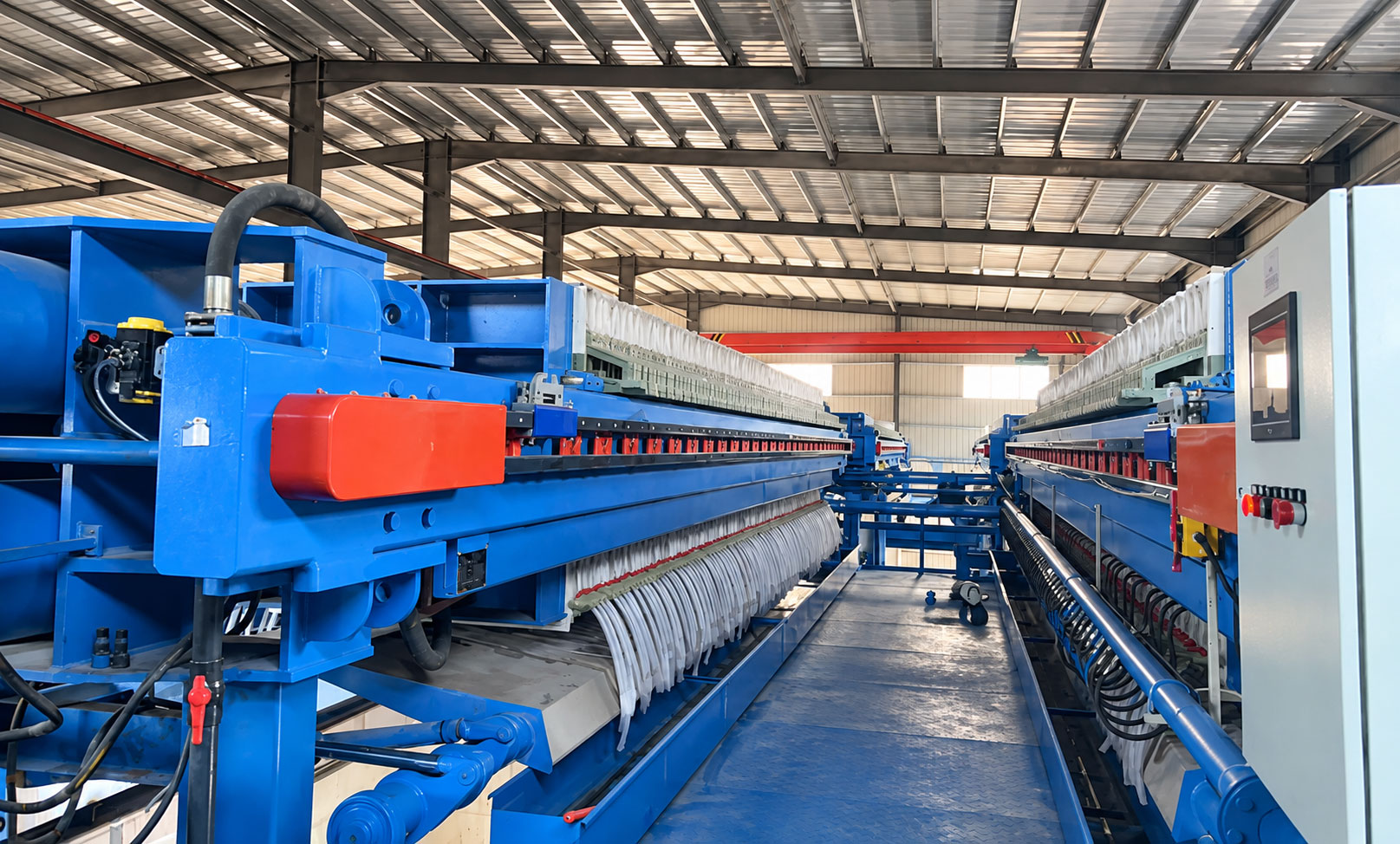

Project photos: River Dredging
4 photosClick a photo to enlargeNeed help choosing the right machine, media or compound?
